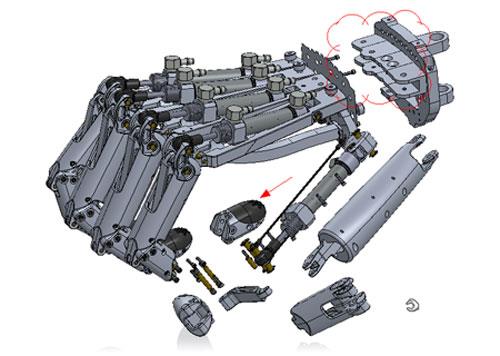

EDrawings Viewer for Windows, Mac and Mobile Fast, reliable, and convenient, eDrawings allows you to view representations of 3D models and 2D drawings created. For anyone who needs to view and interrogate 3D design data. Whether you are involved in commercial manufacture, purchasing, a maker or a student, eDrawings Viewer helps you to communicate, share and collaborate with high fidelity 3D data with an easily shareable lightweight file in its own viewer.

Highlight on Solidworks VS Rhino

Solidworks Introduction
SolidWorks® Standard delivers robust 3D design capabilities, performance, and ease-of-use. Not only can you create fully detailed parts, assemblies, and 2D drawings, but you can access all the tools required to generate complex surfaces, sheet metal flat patterns, and structural welded assemblies and photo rendering. SolidWorks also includes wizards to automate designs, perform stress analysis, and determine the environmental impact of components.
Rhino Introduction
Rhinoceros (Rhino) is commercial NURBS-based 3-D modeling software. The software is commonly used for industrial design, architecture, marine design, jewelry design, automotive design, CAD / CAM, rapid prototyping, reverse engineering, product design as well as the multimedia and graphic design industries.

Recommended software programs are sorted by OS platform (Windows, macOS, Linux, iOS, Android etc.) and possible program actions that can be done with the file: like open easm file, edit easm file, convert easm file, view easm file, play easm file etc. (if exist software for corresponding action in File-Extensions.org's database). Hint: Click on the tab below to simply browse between the. The GrabCAD Library offers millions of free CAD designs, CAD files, and 3D models. Join the GrabCAD Community today to gain access and download!

Comparison with Technology
SolidWorks is parametric and feature base CAD system, which allow users to edit the modeling at any time and go back on each time interval by feature design tree. Also, user can enter the dimension to control model shape and other related feature. Let your design to more automatic
Through Solidworks 2D drawing, users allow to create the 2D drawing easily with any standard. Any dimension can be inserted to drawing sheet automatically and modify when 3D modeling was updated.
Assembly is a main part of SolidWorks. User can join and assemble each component. Also, Solidworks allow user to simulate any mechanical motion (e.g. rotation, linear movement, gear motion and etc. ) after assembly mating
Rhino is NURBS-based 3-D modeling software that user can edit the any surface by control point. It is very easy to create an organic shape modeling. But, user is quiet hard to re-modify when the model has been completed.

Rhino is not included the 2D drawing or assembly functions. Users may export to 3rd party CAD software to create drawing sheet or assembly modeling.
Comparison with communication
Solidworks can save as with eDrawing, which is free 3D modeling viewer software for Window7 Apple Mac OS and IOS (iPhone and iPad). Other third party partner, which may be your customer, other department or vendor, can read your modeling without installation of Solidworks. Also, users can add your comments, make the measurement, explode assembly model, put the water mark and add the password.
Rhino don’t have the similar tools for communication.
Comparison with ExportImport Format
Solidworks can export or import a Solid format that makes sure all edges and faces can be connected properly and it export or import 25 above CAD formats (parasolid, iges, step, STL, Rhino, AI and etc. )
Rhino is so limit to exportimport Solid body and it is so poor on accuracy between the edges and faces. Other CADCAM system is very hard to works on these.
Comparison with Learning
Solidworks is the easiest 3D software on the world. User can understand to create 3D model, 2D standard drawing and assembly after 3 Day basic training. Moreover, most of school, technical College and University choose Solidworks as first 3D design concept teaching tool.
If user has need on advance functions such as complex modeling, sheet metal, simulation (FEA), he can go through Solidworks Tutorial which includes a completed self-learning source on Solidworks.
Also, YouTube contains a thousand of online videos to demonstrate how use SolidWorks.
Rhino is powerful on the freeform modeling. But, it is spent more time to learn on it and there are so limit on the learning source in internet and provide insufficient sources on the Rhino software.
Conclusion
Comparing with two 3D CAD software, Solidworks is a completed 3D solution for a product design process (Design, Validation Communication, and Production) and it is fast learning 3D CAD software for any background user to use. It can enhance your productivity on a fast changing marketing environment.
